A larger tank does not always mean better cleaning.
A Dental Ultrasonic Cleaner should match instrument volume, basket size, power, heating, and clinic workflow.
In this guide, you will learn what buyers should check before ordering a 20L model.
A professional 20L cleaner serves a very different role from portable household units.
For example, compact consumer cleaners may hold only 180–400 ml. Some operate around 40–45 kHz and use only 15–24 W.
Those specifications can help identify comparison fields. They are not direct benchmarks for professional clinic equipment.
YESON currently offers C5, C7, and C9 20L ultrasonic cleaners. Its published models use 40 kHz frequency and 260 W ultrasonic power.
The first specification is not simply "20L."
Buyers should confirm:
Internal tank length
Tank width
Tank depth
Basket dimensions
Working liquid level
Recommended instrument load
Maximum safe loading arrangement
A dental ultrasonic cleaner tank size describes liquid volume. It does not describe usable instrument space.
The basket occupies part of the tank.
The required cleaning solution also reduces available loading volume.
Instrument spacing matters as well. Overloading can block effective ultrasonic exposure.
Long instruments may create another problem.
A 20L tank can still be unsuitable when the internal length is too short.
Ask for detailed tank and basket drawings before ordering.
Tip： Measure the longest instrument cassette before comparing tank capacities.
Ultrasonic frequency influences cavitation behavior.
YESON's current 20L C5, C7, and C9 models are listed at 40 kHz.
Portable dental-appliance cleaners may use similar or slightly higher frequencies. One referenced 180 ml model uses 45 kHz.
However, frequency alone does not define performance.
Buyers should ask:
Is frequency fixed or adjustable?
What is the rated frequency tolerance?
Is it designed for dental instruments?
How does it perform under full loads?
Is cavitation distributed evenly?
A higher number is not automatically better.
The correct dental ultrasonic cleaner frequency should match the intended instruments and cleaning process.
Frequency creates the ultrasonic field.
Power determines how much energy drives that field.
YESON lists 260 W ultrasonic power for its current 20L C5, C7, and C9 models.
However, total wattage does not tell the complete story.
Buyers should confirm:
Total ultrasonic power
Number of transducers
Transducer position
Continuous power
Peak power
Tank geometry
Power distribution
Two cleaners using equal wattage can behave differently.
Tank shape and transducer layout affect cavitation distribution.
For a heavily loaded ultrasonic cleaner for dental instruments, uniform energy matters more than an impressive wattage figure.
Ask whether the supplier provides full-load performance guidance.
Heating can help maintain stable cleaning conditions.
YESON lists 150 W heating power for its C5 and C9 configurations.
A dental ultrasonic cleaner with heater should be evaluated by more than heater wattage.
Check:
Heating power
Adjustable temperature range
Temperature accuracy
Heating time
Temperature display
Overheating protection
The heater should support the selected cleaning solution.
It should not replace correct detergent concentration.
Higher temperature is not always better.
Instrument manufacturers and cleaning-solution suppliers may specify temperature limits.
CDC also notes that cleaning removes debris before later disinfection or sterilization. Automated equipment, including ultrasonic cleaners, can improve cleaning efficiency and reduce worker exposure.
Tip： Ultrasonic cleaning is a cleaning stage, not a substitute for required sterilization.
Drainage matters much more in a 20L machine.
Lifting or manually emptying a large tank can complicate daily work.
Consumer cleaners often have no drainage system.
For example, the referenced 400 ml household cleaner lists no drainage and no heating.
Professional buyers should check:
Manual or automatic drainage
Drain position
Hose connection
Anti-overflow protection
Wastewater handling
Water supply requirements
YESON's C7 includes automatic drainage, anti-overflow protection, and a built-in pure-water supply system.
These functions can reduce manual handling in busy clinics.
They may also require additional plumbing during installation.
Daily clinical use exposes the cleaner to water, chemicals, and repeated handling.
Material quality therefore affects durability.
YESON states that its ultrasonic-cleaner range uses 304 stainless steel construction.
Buyers should confirm:
Tank material
Housing material
Weld quality
Corrosion resistance
Surface finish
Basket material
Stainless steel is common in professional equipment.
However, the grade and construction method should still be verified.
The referenced household cleaner also uses SUS304 inside its small tank. That shows why material alone cannot define equipment class.
The control system affects daily usability.
Basic models may provide timing and temperature settings.
More automated models can manage water and washing programs.
YESON's C9 provides digital control, timing, overheating protection, and a low-liquid alarm.
YESON's C7 adds automatic drainage and customizable washing programs.
Before ordering, check:
Timer range
Temperature control
Low-liquid alarm
Overheating protection
Fault display
Program memory
Automatic drainage
Anti-overflow protection
Controls should reduce operator mistakes.
They should also remain simple enough for daily clinic use.
Tip： Request a complete operating manual before approving the final configuration.
Twenty liters sounds large.
The better question is whether it matches actual instrument flow.
Start with treatment volume.
Record:
Treatment chairs
Patients per day
Instrument sets per procedure
Peak-hour demand
Cleaning batches per day
A five-chair clinic may require very different capacity from a one-chair practice.
Procedure types also change instrument demand.
Basket size should match real instruments.
Long forceps, cassettes, and instrument trays may determine the required dimensions.
Do not select a machine because it holds "20L."
Ask whether your largest tray actually fits.
Some clinics clean frequent small batches.
Others process larger batches between treatment periods.
A 20L unit becomes more useful when daily batches justify its capacity.
Otherwise, a smaller machine may offer sufficient throughput.
Do not calculate capacity from quiet days.
Use normal peak periods.
Growing clinics should also consider future treatment volume.
Tip： Track instrument flow for several busy working days before choosing capacity.
Tank size means little if cleaning performance is inconsistent.
Ultrasonic waves create microscopic cavitation bubbles in the cleaning liquid.
Their collapse helps loosen debris from instrument surfaces.
YESON describes this cavitation process across its ultrasonic-cleaning range.
Ask whether cleaning energy reaches all areas of the basket.
Weak zones can reduce consistency.
A cleaner may appear powerful when empty.
Performance should also remain stable after instruments are loaded.
Ask for recommended maximum loading.
Avoid stacking instruments tightly.
The clinic should follow instrument-processing instructions and manufacturer guidance.
The heating system should work within approved cleaning conditions.
Confirm detergent compatibility before use.
Do not assume stronger chemistry or higher heat always improves cleaning.
They may damage certain materials.
Check whether users can adjust cycle duration.
Also ask whether programs can be repeated easily.
Repeatable settings help when several staff members share the machine.
This improves process consistency.
Not every 20L cleaner provides the same workflow.
YESON's range illustrates this clearly.
Buyers can compare the broader YESON Ultrasonic Cleaner range before selecting a model.
YESON positions the C5 as a 20L single-tank cleaner.
It lists 260 W ultrasonic power, 40 kHz frequency, and 150 W heating.
Its published power supply is AC100–240V, 50–60Hz, 410W.
This configuration suits buyers wanting straightforward daily cleaning.

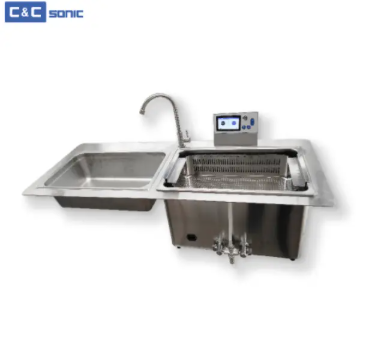

The C7 uses a 20L dual-tank layout.
It adds automatic drainage, anti-overflow protection, pure-water supply, and customizable programs.
These functions may suit higher-volume facilities.
They can also reduce manual water-handling steps.
Buyers can review the YESON C7 Dual-Tank Ultrasonic Cleaner for its current configuration.

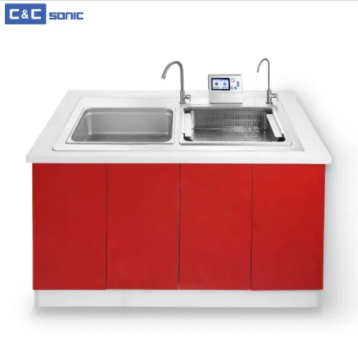

The C9 is another 20L configuration.
YESON lists 260 W ultrasonic power, 40 kHz frequency, and 150 W heating.
It also includes overheating protection and low-liquid warning.
Its inner tank and shell use stainless steel.
The YESON Ultrasonic Cleaner C9 provides a useful example of why tank capacity alone cannot describe a machine.
A machine can meet cleaning requirements yet fail installation planning.
Check the complete ultrasonic cleaner power requirements.
Confirm:
Voltage
Frequency
Total rated power
Heating power
Plug type
YESON currently lists AC100–240V, 50–60Hz, 410W for C5, C7, and C9 specifications.
Still, confirm the final export configuration before ordering.
Some YESON ultrasonic cleaners use embedded installation designs.
Buyers should confirm:
Product dimensions
Cabinet cutout
Ventilation
Drain access
Service clearance
A clinic should plan these dimensions before cabinetry is completed.
Automated models may need dedicated water and drainage connections.
Confirm pipe locations in advance.
This is especially important for C7-type systems.
Ultrasonic cleaners create operating noise.
Ask for measured sound data when available.
This matters when equipment sits near treatment or staff areas.
Maintenance affects long-term reliability.
A low-liquid alarm can help protect equipment.
C9 lists low-liquid warning and overheating protection.
Ask how these alarms appear.
The operator should recognize them quickly.
The tank requires regular cleaning.
A removable basket simplifies this work.
Check whether corners and drainage areas are easy to access.
Drain valves can collect residue.
They should remain accessible for inspection and replacement.
Ask whether local technicians can replace these parts.
YESON publishes a one-year warranty for its C5, C7, and C9 configurations.
Buyers should still confirm the exact warranty scope.
Ask about:
Transducers
Heating parts
Control boards
Drain valves
Sensors
Service response times
Distributor orders require more than technical specifications.
Portable 180–400 ml cleaners target retainers, jewelry, or household items.
A 20L professional Dental Ultrasonic Cleaner supports a different workflow.
Do not compare them solely by frequency.
Tank capacity, power, drainage, heating, and installation requirements differ greatly.
Request current:
Product specifications
Electrical documentation
User manual
Maintenance instructions
Applicable certifications
YESON states that its broader quality system follows ISO 13485. Its website also reports full inspection before shipment.
Confirm which documentation applies to the exact cleaner ordered.
Distributors may need:
Branding
Packaging
Labels
Control language
Voltage
Manuals
Accessories
Confirm these items before production.
Where possible, test representative instruments.
Evaluate basket fit and cleaning consistency.
Also check heating, drainage, and operating controls.
Real-load testing provides stronger evidence than catalog claims.
Use this table before approving a purchase order.
Area | Specifications to Confirm |
|---|---|
Tank | Rated capacity, internal dimensions, basket size |
Ultrasonic system | Frequency, power, transducers, full-load performance |
Heating | Power, temperature range, protection |
Water management | Drainage, overflow protection, water supply |
Construction | Tank grade, housing material, basket material |
Controls | Timer, programs, alarms, digital display |
Installation | Voltage, power, dimensions, drain access |
Safety | Low-liquid alarm, overheating protection |
Service | Warranty, spare parts, maintenance support |
Commercial | OEM options, documentation, delivery requirements |
YESON offers several cleaning and sterilization products through its product center.
Its wider medical sterilization portfolio is also available through YESON Medical Device.
Choosing a 20L Dental Ultrasonic Cleaner requires checking tank size, basket capacity, frequency, power, heating, drainage, safety, and installation needs. YESON Medical Device offers 20L ultrasonic cleaner options for different dental workflows. Its C5, C7, and C9 models provide practical cleaning capacity, heating, safety controls, and workflow features that help clinics improve instrument processing efficiency.
A: A 20L Dental Ultrasonic Cleaner uses ultrasonic cleaning to process larger dental instrument batches efficiently.
A: Match Dental Ultrasonic Cleaner capacity to basket dimensions, daily instrument volume, and batch frequency.
A: Dental Ultrasonic Cleaner frequency affects cavitation behavior, cleaning consistency, and instrument suitability.
A: Ultrasonic power, heating function, drainage, automation, controls, and safety features influence cost.
A: Overloading, low liquid levels, poor solution choice, or uneven cavitation can reduce ultrasonic cleaning performance.
