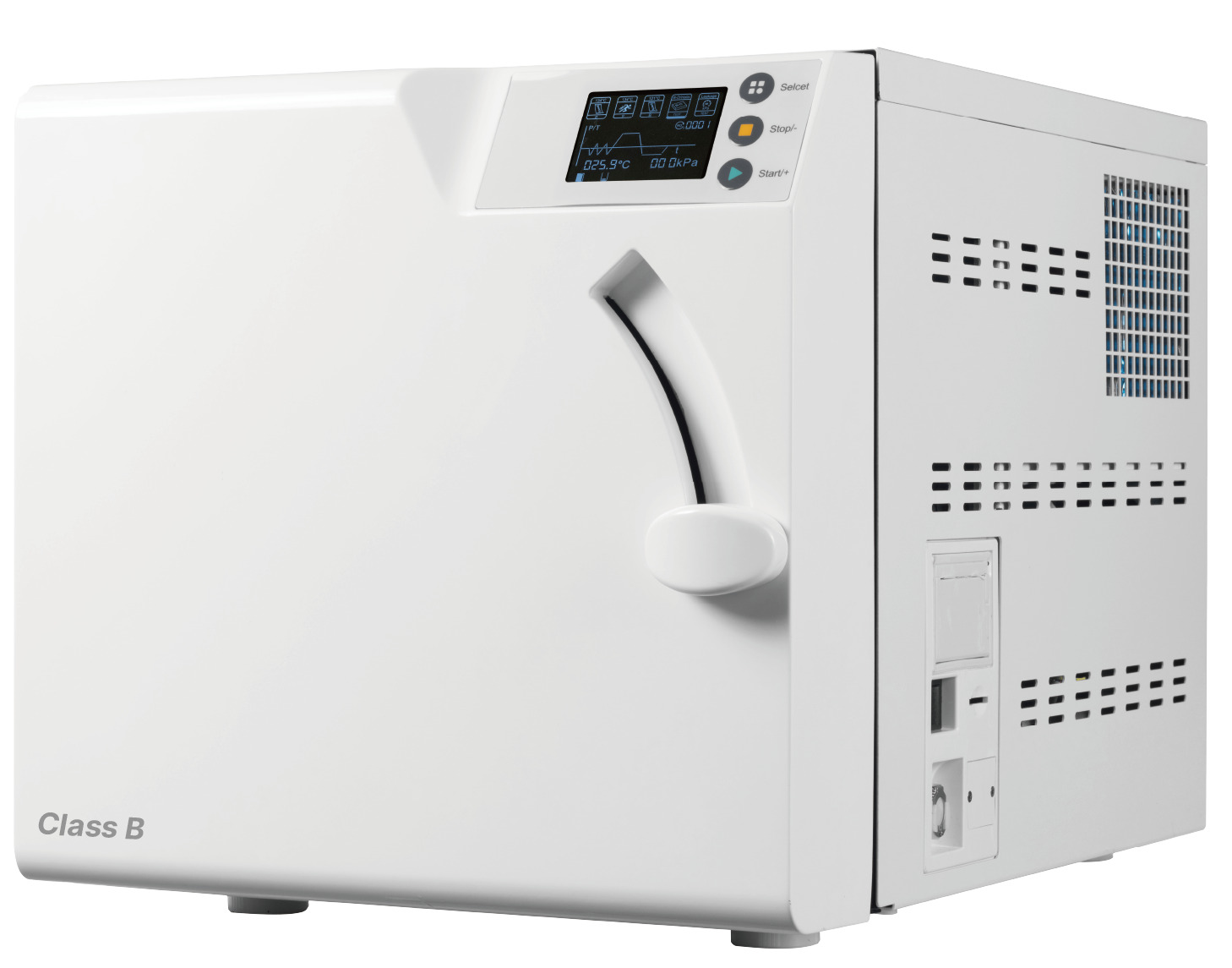

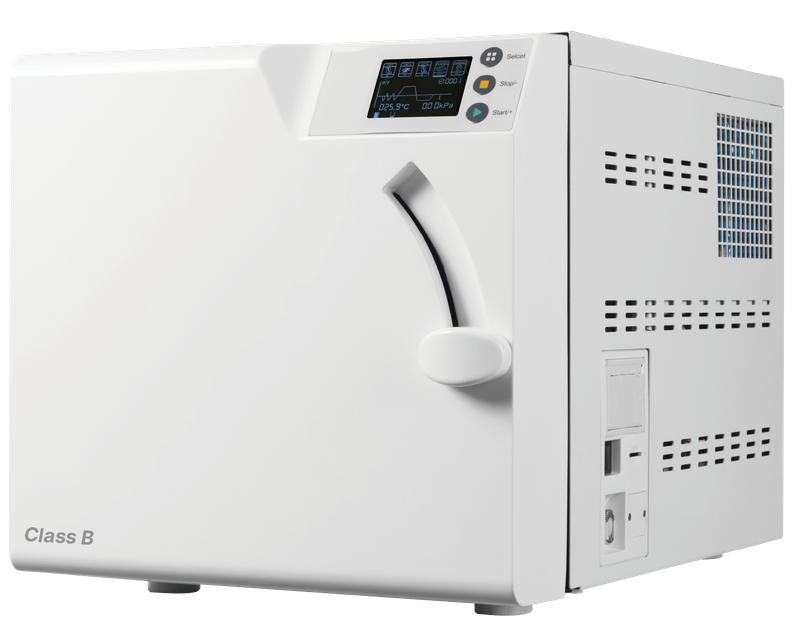

The YESON 23L Class B Autoclave is a reliable solution for instrument sterilization. It can offer a more comprehensive sterilization guarantee. With its intuitive program diagraph display, two high-capacity water tanks, and optional printer, it balances advanced technology with user-friendly operation for daily clinical use.
| Feature | Details |
| Model | 23L (22L) |
| Input | 220V±22V / 50HZ |
| Power | 2300 VA |
| Chamber Size | 25.4 * 45 cm |
| Product Size | 61 * 43.5 * 42.5 cm (W*L*H) |
| Installation Size | 60 cm |
| N.W. / G.W. | 38Kgs / 40Kgs |
| Program | 134°C Universal / Quick 121°C Universal Test Vacuum Test B-D / Helix |
| Class | B |
Independent Steam Generator: Located outside the chamber to prevent dry-heating and ensure saturated steam quality.
Smart Monitoring: Features a "Water Quality Module" that blocks unqualified water to protect the internal system.
User-Friendly Interface: Large LCD "Program Diagraph" allows users to track temperature, pressure, and time easily.
Maintenance Simplified: The high-quality stainless steel chamber is designed with rounded edges for easy cleaning.
Dual Water Tanks: High capacity reduces the frequency of water filling, increasing clinic efficiency.
Automated Safety: Automatic door locking mechanism during high-pressure cycles.
Data Traceability: Optional built-in printer for sterilization record keeping (essential for medical compliance).
