Owning a premium sterilizer solves only part of the infection control puzzle. Operational execution dictates the rest. The physical arrangement of pouches, cassettes, and glassware directly governs fluid dynamics inside the pressure vessel. A haphazard layout traps ambient air. It creates dangerous thermal cold spots. Ultimately, this blocks the sterilizing agent from reaching internal instrument surfaces. The inevitable results are aborted runs and soaking wet loads.
This comprehensive guide details how your configuration influences thermal transfer. We will explore why respecting spatial limits is non-negotiable. Furthermore, we will examine how utilizing engineered accessories optimizes your entire daily processing workflow. Taking a systematic approach to chamber organization drastically reduces reprocessing time and protects your valuable instrumentation.
Vapor Contact is the Goal: An effective arrangement ensures pressurized vapor freely circulates and makes direct physical contact with all surfaces.
Air is the Enemy: Overcrowding blocks flow pathways and traps insulating pockets of cold air. This prevents complete microbial destruction.
Respect Spatial Limits: Maximizing throughput without exceeding engineered capacity is vital for operational success and equipment longevity.
Use Proper Accessories: Dedicated racks keep items properly spaced. They force paper and plastic pouches to stand vertically on their edges.
Drying Relies on Arrangement: Correct spacing guarantees necessary thermal transfer while enabling a successful drying phase at the end of the operation.
Pressurized sterilization requires precise thermodynamic control. It is not merely about applying intense heat. The system relies on rapid latent heat transfer to neutralize microorganisms safely and efficiently.
As pressurized vapor enters the vessel, it carries massive thermal energy. Upon contacting cooler metal or plastic, the vapor condenses into liquid water. This phase change releases a violent burst of latent heat directly onto the item. Microbial proteins coagulate instantly, destroying cellular structures.
However, for this reaction to succeed, steam penetration must be absolute. The vapor must make direct, unimpeded contact with the item being processed. Physical barriers prevent vapor from penetrating a surgical pack. Consequently, the hidden tools never reach the required lethality temperature. They remain contaminated and pose a severe risk to patient safety.
Understanding the ideal state of thermal transfer highlights exactly what happens when operational protocols break down. A poor layout introduces physical roadblocks that disrupt necessary thermodynamic reactions.
Ambient air acts as your primary obstacle in pressurized environments. Vapor and air possess vastly different densities and do not mix naturally. Packing items too tightly prevents air from escaping the chamber during the initial vacuum conditioning phase.
Because air is a highly inefficient heat conductor, these trapped pockets create localized cold spots. In these isolated zones, the temperature simply will not rise to the critical 121 degrees Celsius or 134 degrees Celsius threshold required to kill resilient bacterial spores.
During a busy shift, operators often face the temptation to cram one more cassette into the machine. This practice introduces severe operational risks. Exceeding the manufacturer-specified chamber capacity fundamentally chokes established circulation pathways.
When overloaded, the dense mass of cold metal absorbs heat far too slowly. Restricted spacing prevents vapor from reaching the center of the pile. This triggers a frustrating domino effect. Inadequate heat distribution leads to aborted runs, persistent error codes, and soaking wet instruments that technicians must painstakingly repackage.
Relying solely on the flat bottom surface of the machine guarantees failure. Achieving the perfect balance between maximizing daily throughput and maintaining strict spatial requirements demands specialized equipment accessories.
A dedicated tray rack acts as an indispensable structural tool. Rather than allowing heavy items to rest directly on top of one another, racks create structured, tiered layers. This instantly preserves the surface area available for vapor contact.

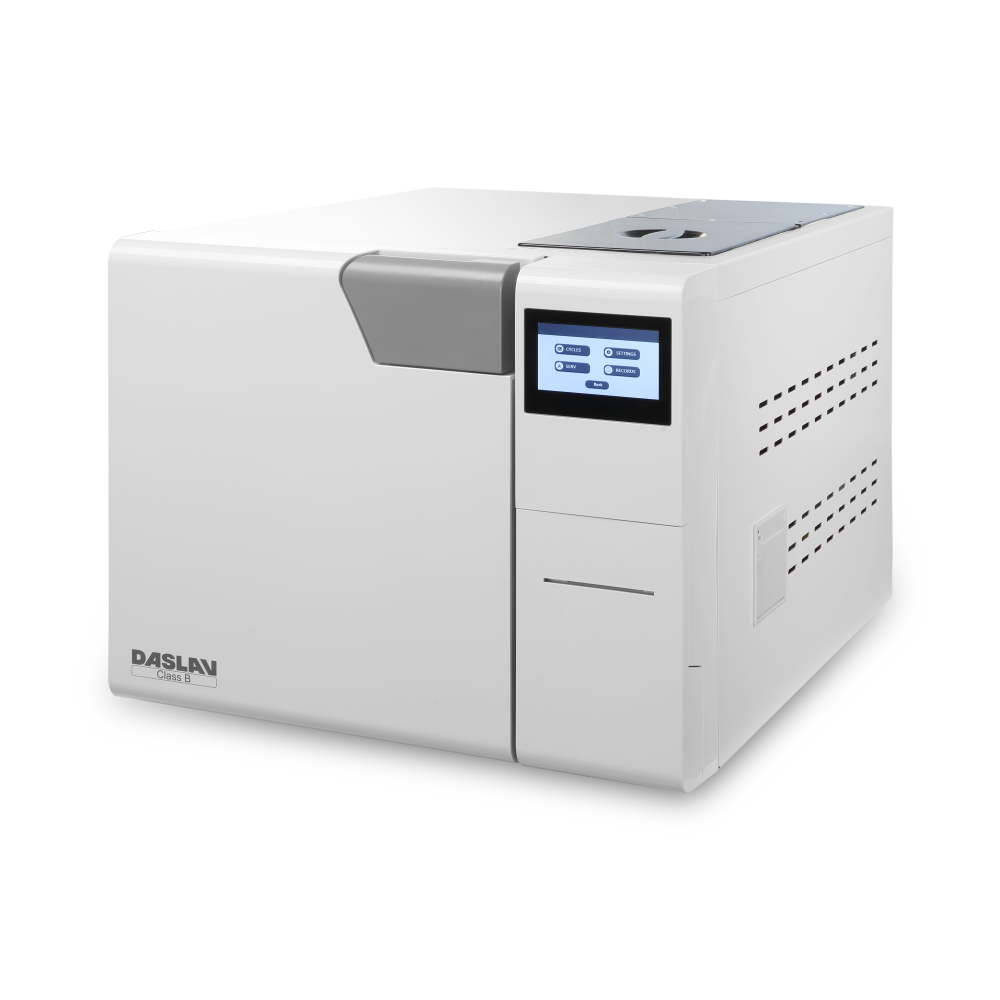

Modern B-Class sterilizers typically feature 18-liter or 23-liter chambers equipped with modular stainless steel racks. These engineered systems usually accommodate 3 to 5 trays. Utilizing wire or perforated rack systems facilitates both vertical and horizontal circulation. Vapor rises smoothly from the bottom, passes through the lower levels, and reaches the upper shelves without obstruction.
Different instrument profiles demand different support structures. Flat racks provide the ideal surface for unwrapped solid tools or large basins. In contrast, specialized pouch dividers are engineered specifically for paper and plastic peel pouches. These dividers force the pouches to stand vertically on their edges. This prevents operators from lazily stacking them flat and maximizes surface area exposure.
Performance Metric | Optimal Configuration (Tiered Racks) | Poor Configuration (Flat Stacking) |
|---|---|---|
Vapor Circulation | Unimpeded 3D flow paths | Blocked pathways, severe cold spots |
Drying Phase Efficiency | Complete moisture evaporation | Trapped condensation, wet loads |
Cycle Time | Fast heating, stable equilibrium | Prolonged come-up time, frequent timeouts |
Instrument Longevity | Minimal oxidation and wear | Accelerated rusting due to residual moisture |
Translating thermodynamic science into daily operational habits requires strict adherence to established protocols. Operators must be trained to load the machine correctly and consistently, regardless of how busy the shift becomes.
The golden rule of porous load placement involves proper orientation. Paper and plastic peel pouches must be placed on their edge, exactly like books arranged neatly on a library shelf. Furthermore, they should be oriented so the porous paper side of one pouch faces the impermeable plastic side of the adjacent pouch.
Leaving a minimum of one inch of space between each pack is crucial. Because the clear plastic side is impermeable to moisture, vapor must enter and exit entirely through the porous paper barrier. Smashing pouches together blocks vapor from entering and prevents ambient air from exhausting.
When utilizing a multi-tiered system, weight distribution dictates success. Facilities must implement a strict top-to-bottom loading strategy. Lighter items, such as textiles and small wrapped packs, belong on the top shelves. Heavier items, such as dense surgical cassettes, must sit on the bottom.
This specific arrangement prevents heavy condensation damage. Dense metal generates significant condensation as it absorbs latent heat. If placed on top, this dirty moisture drips down onto the vulnerable paper pouches below. This instantly destroys their sterile barrier.
Instrument geometry directly dictates placement. Basins, bowls, pitchers, and hollow items present a unique challenge. Their concave shapes naturally trap air and water. Therefore, operators must always load these items tilted slightly on their sides.
A bowl placed perfectly upright acts like a cup, trapping heavy cold air at the bottom. Conversely, a bowl placed perfectly upside down traps condensation, resulting in a pool of water at the end of the run. Tilting them at an angle allows heavy cold air to flow out smoothly while excess moisture drains away naturally.
The broader infection control landscape is experiencing a distinct paradigm shift. Historically, technicians relied heavily on visual estimates to arrange instruments. Today, stringent regulatory scrutiny drives the industry rapidly toward rigid standardization.
Modern Central Sterile Services Departments and high-volume dental clinics heavily emphasize data-driven compliance. Facilities increasingly adopt geometry-specific loading templates. They utilize digital logging systems to photograph and verify configurations before initiating a run. This evolution highlights a universal consensus. Physical load geometry represents a highly regulated parameter directly tied to legal compliance and quality assurance metrics.
The physical arrangement influences much more than just the peak exposure phase. It dictates the efficiency and success of every single phase of the machine's operation.
During the initial conditioning phase, the machine removes ambient air and injects vapor to raise the internal temperature. A dense, poorly arranged load creates massive thermal mass and severe airflow resistance. This drastically increases the come-up time.
If the load is too dense, the sensors struggle to achieve equilibrium. The machine continuously injects vapor, desperately trying to overcome the insulating air pockets. This prolonged heating phase wastes energy, degrades instrument metals over time, and frequently triggers timeout errors.
Vapor penetration represents only one half of the equation. Moisture removal is the other. A flawless sterilization cycle demands a successful drying phase. At the end of the exposure period, the machine exhausts pressure and relies on residual heat to evaporate remaining moisture.
Tightly packed items trap moisture between them. This water cannot evaporate into the chamber environment. Consequently, tightly packed pouches inevitably emerge wet. A wet pouch is considered unsterile. The moisture creates a wicking effect, allowing microscopic bacteria from the outside environment to travel straight through the damp paper and recontaminate the instruments.
Even seasoned technicians fall into bad habits when rushed. Identifying and eliminating these common errors serves as a crucial step in maintaining a reliable workflow.
The most frequent and detrimental mistake involves stacking pouches flat on top of one another. The weight of the items compresses the paper. The plastic side of one pouch completely seals off the paper side of the pouch beneath it. This entirely blocks vapor from reaching the items located in the middle and bottom of the stack.
The interior walls serve as the primary boundary for pressurized heat. They are often equipped with active heating jackets. Instruments, pouches, and wrapped packs must never come into direct physical contact with these walls.
Touching the walls poses severe risks. Intense direct heat causes paper packaging to scorch or melt. Additionally, walls act as condensation zones during certain phases. Items resting against them absorb excess water, leading to soaking wet loads that fail quality assurance checks.
Implementing a structured layout is only the first step. Facilities must empirically prove their methods work effectively under real-world conditions.
Operators must use standardized monitoring tools to verify thermal transfer in the most challenging areas. Strategically embed Chemical Indicators and Biological Indicators within the load. Never place indicators loosely on an empty shelf.
Hide them inside the densest packs. Alternatively, place them in known cold spots, typically the bottom front near the exhaust drain. A successful readout from a Biological Indicator provides objective, scientific proof that your autoclave loading layout allowed for adequate vapor penetration.
Compliance requires unwavering consistency. Establish, document, and photograph standardized layouts tailored specifically to your daily instrument volume. Post these approved configurations near the processing area to ensure all staff members adhere to the exact same protocols. Meticulous logbook documentation ensures strict capacity rules are respected during every single run.
The success of your infection control efforts relies heavily on the invisible flow of pressurized vapor. Understanding how the physical arrangement affects thermal dynamics prevents aborted runs and protects expensive tools. Always respect spatial limits, utilize high-quality racks to maintain strict spacing, and follow best practices for instrument orientation. A well-planned layout forms the foundational bedrock of a flawless operation. If you are looking to upgrade your clinic's efficiency and ensure absolute patient safety, explore professional-grade sterilizers and engineered accessories at Yeson Medicine to find the perfect solution for your throughput requirements.
Operators should leave at least 1 to 2 inches of space between individual packs, pouches, and cassettes. This critical gap ensures pressurized vapor freely circulates around every single item and penetrates porous packaging materials efficiently.
No, you should never stack solid instrument trays directly on top of one another. Doing so completely blocks vapor from reaching items hidden in the lower trays and prevents trapped cold air from escaping. Always use a proper tiered rack to separate layers and maintain adequate airflow.
Wet loads are almost always the direct result of a poor spatial arrangement. If pouches are stacked flat, crammed too close together, or if heavy metal items sit on shelves above them, the trapped moisture simply cannot evaporate during the machine's drying phase.
Yes. Liquid loads require an entirely different program and spatial layout. Liquids must sit in vented or loosely capped containers to prevent glass explosions. They should rest in secondary containment to catch accidental boil-overs. Never process them in the same run as porous items or wrapped solid instruments.
The most difficult area for thermal penetration is typically the dead center of the densest surgical pack, or the bottom front of the chamber near the drain valve. Heavy cold air naturally tends to settle here. This is exactly why chemical and biological indicators must sit in these challenging locations to verify success.
Overloading creates a massive thermal mass that the machine struggles to heat. This restricts vapor circulation, traps insulating cold air, and drastically extends the cycle time. Ultimately, it leads to aborted cycles, persistent error codes, and unsterile instruments due to inadequate temperature exposure.
When processing mixed loads, strict weight distribution is mandatory. Place lighter items like textiles and paper-plastic pouches on the top racks. Place heavy, dense metal cassettes on the bottom racks. This prevents heavy condensation from the metal from dripping down and destroying the sterile barriers of the porous items below.
