Ordering the wrong autoclave can create costly installation and compliance problems.
A Class B Dental Autoclave should match chamber needs, vacuum performance, power supply, safety, and local requirements.
In this guide, you will learn which specifications distributors should confirm before placing an order.
The technical specification sheet should be reviewed before commercial terms. These seven areas have the greatest effect on product suitability.
Capacity is often shown in liters. However, liters alone do not explain actual loading space.
Distributors should confirm:
Rated chamber capacity
Internal chamber diameter
Chamber depth
Tray dimensions
Number of trays
Usable loading area
Two sterilizers can share the same nominal capacity. Their internal dimensions may still differ significantly.
This matters for wrapped instruments, handpieces, cassettes, and longer dental tools.
YESON offers compact Pro-Series options in 8L and 12L configurations. Larger Pro-Series models are available in 18L and 23L capacities.
The YESON 23L Pro-Series lists a Ø250 × 450 mm chamber. It also uses a stainless steel 304 chamber.
Distributors can review the YESON sterilizer range before selecting capacities.
Tip： Compare actual chamber dimensions before comparing nominal liter capacity.
Vacuum performance is central to Class B sterilization.
A Class B autoclave vacuum system should remove trapped air before steam exposure. This becomes important for wrapped and hollow instruments.
Ask the manufacturer to confirm:
Pre-vacuum stages
Vacuum pump design
Target vacuum level
Post-vacuum drying
Vacuum leak test
Bowie-Dick test availability
Do not accept the term "vacuum sterilizer" without supporting specifications.
ISO 11140-6:2022 covers performance requirements for indicator systems used when testing steam penetration in Type B cycles of small steam sterilizers.
This makes vacuum performance more than a marketing feature.
Different customers may sterilize different instrument loads.
A distributor should therefore review all dental autoclave sterilization cycles before ordering.
Ask whether cycles support:
Wrapped instruments
Unwrapped instruments
Solid instruments
Dental handpieces
Porous loads
Hollow loads
Rubber items
Test programs
Also confirm the operating temperatures.
Many sterilizers use programs around 121°C and 134°C. However, distributors should use the manufacturer's validated cycle information.
Cycle names can also differ between models.
A "fast cycle" may apply only to certain loads. It should not be treated as the standard duration for every load type.
Sterilization holding time is only one part.
A complete cycle can include:
Pre-vacuum
Heating
Sterilization
Exhaust
Vacuum drying
Pressure equalization
These stages determine real clinic throughput.
A short sterilization phase does not guarantee a short total cycle.
Drying also matters.
Wet packages can create workflow problems after sterilization. Distributors should ask how drying performance changes under full loads.
Confirm whether drying time changes according to packaging or load type.
For fast-turnover clinics, compare complete cycle times rather than heating times alone.
Electrical specifications are critical for international distribution.
Different markets use different power systems.
Before ordering, verify:
Rated voltage
Frequency
Power consumption
Plug configuration
Circuit requirements
Regional electrical options
YESON's 23L Pro-Series currently lists 230V, 50Hz, and 2500W.
That configuration may not match every export market.
A distributor selling across several regions may need different SKUs.
Class B autoclave voltage requirements should therefore appear clearly on each purchase specification.
Note： Never assume a 220V model is automatically suitable for every 220–240V market.
Many clinics now expect traceable sterilization records.
Data requirements may also differ across healthcare systems.
Confirm whether the sterilizer supports:
Built-in printing
USB export
SD card storage
Cycle history
Fault history
Temperature records
Pressure records
Cycle result identification
YESON's DASLAV S 18L/23L models list thermal printing and SD card data output. An optional label printer is also shown.
Distributors should determine which recording method their customers prefer.
Printed labels may suit one workflow. Electronic records may suit another.
A sterilizer operates under pressure and high temperature.
Safety systems therefore require careful review.
Ask about:
Electronic door locking
Mechanical door locking
Pressure interlock
Over-temperature protection
Over-pressure protection
Low-water protection
Fault alarms
Emergency protection
YESON's DASLAV S models list both electronic and mechanical door locking.
Distributors should also request the related technical documentation.
Tip： Safety features should be verified from technical files, not product photographs.
Chamber size should match the expected clinical workload.
Compact units may suit lower daily instrument volumes.
Typical customers can include:
Small dental clinics
Orthodontic practices
Specialty clinics
Smaller laboratories
Higher-volume clinics may prefer larger chambers.
However, chamber volume should not be considered alone.
The Class B autoclave chamber size affects what actually fits.
A 23L chamber may provide more depth than an 18L version. That difference can matter for long instrument trays.
YESON's DASLAV S lists chambers of Ø254 × 350 mm for 18L. The 23L version uses Ø254 × 450 mm.
This shows why dimensions deserve separate comparison.
Larger chambers can process more instruments per cycle.
Smaller chambers may support faster turnover for light loads.
Distributors should compare daily throughput rather than one-cycle capacity.
The right choice depends on patient volume and instrument rotation.
One model rarely suits every buyer.
A distributor may serve dental clinics, hospitals, laboratories, or veterinary practices.
YESON currently offers sterilizers from compact capacities through larger units. Its website states a range from 3L to 45L.
This supports a multi-capacity distribution strategy.
Class B performance depends on more than temperature.
Ask how air is removed before sterilization.
Trapped air can interfere with steam penetration.
This issue becomes especially important with hollow or porous loads.
ISO 11140-6:2022 specifically covers devices used to test steam penetration for Type B cycles.
The supplier should explain its vacuum sequence clearly.
Drying should also be evaluated under realistic loading conditions.
Ask whether the system uses active vacuum drying.
Then confirm performance with wrapped loads.
Load density can affect drying time.
Packaging materials may also influence moisture removal.
Distributors should check available verification programs.
Typical functions can include:
Bowie-Dick testing
Vacuum leak testing
Process challenge device compatibility
These functions support routine performance checks.
They should be confirmed before the order.
Filtered air may enter during pressure equalization.
Ask for filter specifications and replacement intervals.
Consumable availability also affects long-term service.
This point becomes more important after many machines enter the market.
Installation problems often begin before shipment.
Confirm voltage and frequency for each sales market.
Do not combine incompatible electrical configurations under one SKU.
Regional labeling should also match the final product.
Ask for exact external dimensions.
Also confirm:
Net weight
Door clearance
Ventilation clearance
Required installation depth

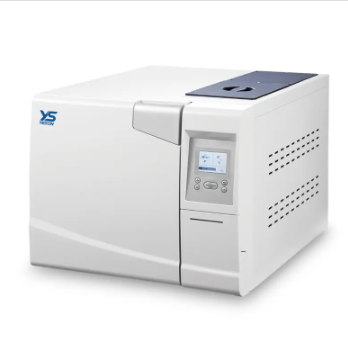

YESON's Pro-Series 23L measures 500 × 655 × 430 mm. It lists a net weight of 55 kg.
These figures affect freight and clinic placement.
Distributors can review the YESON Pro-Series 18L/23L model for current specifications.
Check whether clean and waste tanks are separate.
Also ask how each tank is filled and drained.
Separate water management can simplify daily operation.
Tank capacity affects refill frequency.
Steam sterilizers require suitable water quality.
Ask which water specification the manufacturer recommends.
Distributors may also need water purification equipment.
YESON positions itself as a sterilization-chain manufacturer, not only an autoclave supplier. Its wider range includes supporting sterilization equipment.
Regulatory documentation should be checked before a bulk purchase.
European-market distributors should review EN 13060 documentation carefully.
BSI currently lists BS EN 13060:2025 as the current British adoption. It was published in August 2025.
The standard covers automatically controlled small steam sterilizers for medical purposes. Its scope includes units below 60L under defined dimensional conditions.
Do not rely on old catalog wording.
Request documentation supporting the current claimed standard.
YESON states that it holds ISO 13485 and CE certifications.
Distributors should request current copies.
Check:
Certificate number
Manufacturer identity
Product scope
Validity
Issuing body
The document scope must match the ordered products.
Some users need detailed cycle records.
Possible fields include:
Date
Time
Cycle number
Temperature
Pressure
Result
Operator information
Confirm which information the equipment records.
European documentation does not automatically cover every market.
Distributors remain responsible for checking destination-country requirements.
Local medical-device registration may require additional documents.
Note： Regulatory requirements should be confirmed before deposits or bulk production begin.
After-sales capability becomes more important as sales volume grows.
Ask for a consumables list before ordering.
Common items may include seals, filters, printer paper, and water components.
This helps distributors plan spare-parts inventory.
Ask which parts are stocked regularly.
Also confirm typical dispatch times.
Long replacement delays can affect customer confidence.
Distributors need practical service information.
Ask whether YESON provides:
Service manuals
Error-code guidance
Wiring information
Troubleshooting support
Remote technical assistance
These resources help local teams solve common problems.
Local technicians may need formal training.
Ask whether training covers installation and preventive maintenance.
Fault diagnosis and component replacement should also be included.
For broader company and support information, distributors can review YESON Medical Device.
Technical specifications are only part of distributor planning.
Ask whether the manufacturer supports:
Distributor logos
Private labels
Packaging changes
Language options
User interface localization
Market-specific labels
These requirements should be written into the purchase order.
A sample unit allows local testing.
Distributors can evaluate:
Installation
Interface
Cycle workflow
Packaging
Documentation
Customer feedback
A sample also helps train sales and service teams.
Ask for:
Carton dimensions
Net weight
Gross weight
Pallet quantity
Shipping configuration
Incoterms
These details influence landed cost.
Define responsibilities before volume orders.
Clarify who manages:
Warranty claims
Technical questions
Spare parts
Local repairs
Training
Customer complaints
Written responsibilities reduce later disputes.
A structured comparison sheet simplifies supplier evaluation.
Area | Specifications to Confirm |
|---|---|
Chamber | Capacity, diameter, depth, trays, usable space |
Vacuum | Pre-vacuum stages, pump, drying, vacuum test |
Cycles | Load types, temperatures, test cycles, cycle time |
Electrical | Voltage, frequency, power, plug configuration |
Installation | Size, weight, clearance, water requirements |
Traceability | Printer, USB, storage, cycle records |
Safety | Door lock, pressure, temperature, alarms |
Compliance | EN 13060, CE, ISO 13485, local registration |
Service | Consumables, spare parts, manuals, training |
Commercial | MOQ, samples, OEM, packaging, warranty |
Distributors should complete this table before releasing a purchase order.
YESON's current product center includes several sterilizer series and capacity options. Buyers can compare them through the YESON product center.
Distributors should confirm chamber size, vacuum performance, sterilization cycles, power supply, safety, traceability, and compliance before ordering. YESON Medical Device offers multiple Class B sterilizer capacities for different clinical needs. Its products combine practical cycle options, safety features, traceability functions, and distributor support to simplify product selection and market deployment.
A: Confirm chamber size, vacuum system, sterilization cycles, voltage, safety features, and compliance documents.
A: Match Class B Dental Autoclave capacity to instrument volume, tray dimensions, and clinic throughput.
A: Class B Dental Autoclave electrical settings must match local voltage, frequency, plug, and installation conditions.
A: Chamber capacity, vacuum performance, cycle options, traceability, safety systems, and OEM requirements influence pricing.
A: Poor loading, vacuum faults, wrong water quality, worn seals, or incorrect cycle selection can reduce performance.
